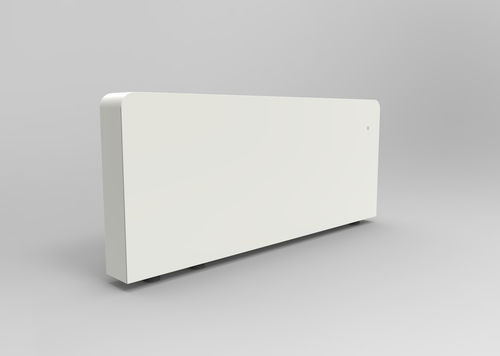

Heat pump device for air dehumidification
Floor standing device for installation (wall mounting) in the swimming pool
At a Glance
Description
Technical data
Planning and assembly instructions
- Housing in a visually appealing slim design
- Colour RAL 9010 pure white equipped with a glass front cover
- Integrated touch panel operated in the glass front
- Optionally for standing or wall mounting
- Very quiet (44dB)
- Service friendly
- Energy-saving fan equipped with an EC direct current motor
- Heat recovery by using the heat pump principle
- Integrated humidity sensor
- Integrated, ready-to-plug-in control system
Equipment list
EC centrifugal fan, heat pump unit for the dehumidification with energy recovery, condensate pan equipped with a drain hose, integrated control equipped with touch panel control unit positioned on the glass front, and integrated humidity sensor.
Housing
Base frame made of galvanized and powder-coated sheet steel in the colour RAL 9010 (pure white) equipped with a visually appealing glass front cover.
Fan
Centrifugal fan equipped with an energy-saving and speed-controllable EC motor.
Heat pump unit
Refrigeration circuit equipped with a completely hermetic compressor, evaporator and condenser coated with epoxy resin; condensate pan with drain.
Control
Integrated control equipped with a touch panel control unit positioned on the glass front.
| Size 30 | |
|---|---|
| Nominal volume flow m3/h | 750 |
| Dehumidification performance (at 30°C/60% RH) l/h | 28 |
| Dehumidification performance (at 30°C/80% RH) l/h | 4.3 |
| for water surface up to 1) m2 | 32 |
| Range of working temperature °C | 15 - 32 |
| Total power consumption KW | 2.3 |
| Voltage V | 230 |
| Type | TWR |
1) The exact calculation in accordance with the standard VDI 2089 is required
General planning information
- Determination of the space requirements and of the appropriate installation site
- Provision of electrical feed to the device
- Provision of a condensate line from the device to the sewer
Notes relating to the installation site
- Basically, the device should be installed in the Zone 2 (acc. to the standard VDE 0100-702), i.e. at a distance of > 2 m from the pool edge.
- In so-called "small swimming pools" where the room dimensions do not exceed the Zone 1, the device can also be installed in this Zone 1.
However, the distance to the pool should be > 1.25 m. - The distance to the showers and sinks should also be > 1.25 m.
